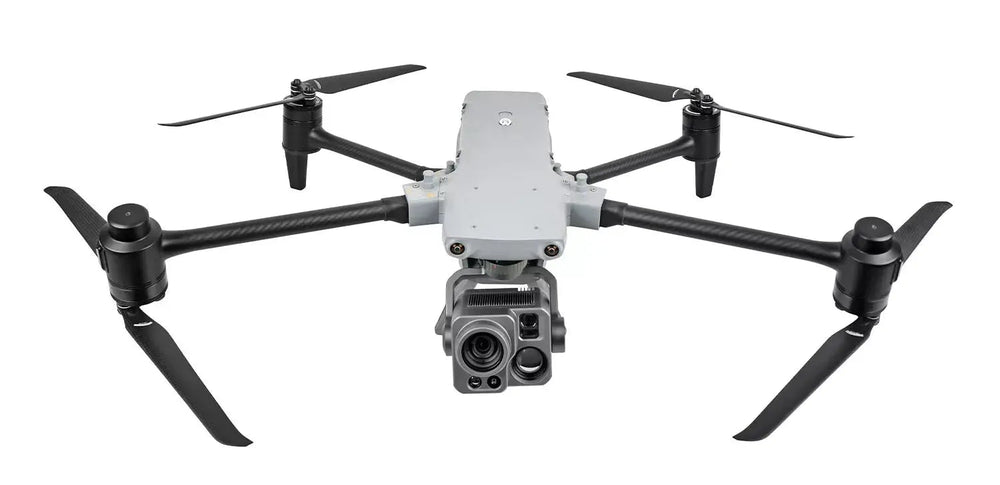

Autel Alpha L35T Bundle

Description

Prepare for a new era in drone technology with the Autel Alpha, now available for preorders. This remarkable drone offers an impressive array of features designed to elevate your aerial experience. Autel Alpha is an intelligent industrial drone for multi-purpose, boasting significant enhancements in autonomous flight capabilities, anti-interference capabilities, obstacle avoidance, transmission technology, and battery systems.

With a foldable design, IP55 rating weather rating, it can take on any environment. The built in RTK dual antenna systems ensures precise control within millimeters when conducting missions. The DG-L35T gimbal integrates a mind blowing 560x super hybrid zoom camera, dual thermal imaging cameras, ultra sensitive starlight night vision camera, and laser range finder, providing more professional and comprehensive solutions for public safety, energy inspections, and emergency management.

Features

The Ultimate Aerial Tool

The Autel Alpha is one of the most capable drones that has ever been produced. It comes equipped with the following features and capabilities:

- Non-GNSS Visual Positioning
- A-Mesh Network Connectivity
- 56x Dual Thermal Zoom
- 4K/35x Optical Zoom
- 560x Hybrid Zoom
- IP55 Weather Rating
- Hot-Swappable Battery Design
- 720° Omnidirectional Obstacle Avoidance
- 12.4 Mile Transmission Range

Insight Beyond Limits

The Autel DG-L35T Gimbal integrates dual thermal imaging cameras (short/long focal length), a 4K/35x night vision Zoom camera, a wide-angle camera and a laser rangefinder.

Super Zoom & Night Vision
Supports 4K/35x continuous optical zoom, and 560x hybrid zoom with clear observation up to 5 miles away and license plates up to 0.4 miles away. Supports ultra-sensitive starlight vision. (ISO up to 160000).

Strong Infrared Perception
Equipped with a 56x hybrid zoom, dual-thermal imaging lenses, with a resolution of 640x512. Utilizing a 13mm short-focus lens and a 45mm long-focus lens, catering to both wide and global view.

Wide Camera
48MP
Aperture: F/2.8
DFOV: 84°F
Equivalent Focal Length: 24mm

Accurate Ranging
Tap a target to obtain the coordinates and altitude rapidly from up to 1.24 miles away.

Exceptional Anti-Interference Capability

The Autel Alpha's high-precision visual positioning capabilities, adaptive frequency-hopping and SLAM navigation technology empowers resistance from interference and enables the drone to fly confidently near powerlines, critical structures and in complex areas.

A-Mesh Network

With integrated A-Mesh technology, the drone can establish networks between drones and controllers, supporting various working modes such as "single-controller multiple drones" and "master-slave dual control". Even in scenarios with long distances and obstacles, such as mountains, buildings, or areas without public network, it can achieve multi-device networking, enabling drone-to-drone autonomous communication, connection, and collaboration.

Auto Path Finding

Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

720° Omnidirectional Obstacle Avoidance

By integrating multi-source sensor fusion technology, including 5-direction dual fisheye vision + 6-direction millimeter-wave radar, the drone is equipped with 720° omnidirectional perception and obstacle avoidance capabilities. Additionally, it supports nighttime obstacle avoidance for flight safety.

Platform Capabilities

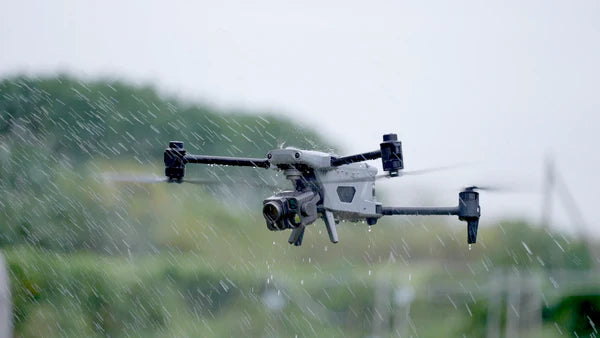

• Redefines proficiency with its robust platform and all weather design.
  - Weather rating: IP55
  - Wind Resistance: 27 Mph
  - Service Ceiling: 23,000 ft*
  - Operation Temperature: -4°F to 122°F ( -20°C to 50°C)

Hot-Swappable Batteries

With a dual-battery design, supporting hot-swappable batteries, providing a runtime up to 40 minutes, enabling seamless and efficient operations.

Multiple Payload Compatible

The aircraft features three mounting interfaces: mounting interfaces. The Autel PSDK developer platform is open for creating a new industry ecosystem such as searchlights, loudspeakers, 4G/5G modules, and more.

Skylink 3.0

With Skylink 3.0, the system comes with 4 antennas, 4 Frequency bands, enabling a transmission distance of up to 20 kilometers. It supports auto frequency hopping on 900MHz/2.4GHz/5.2GHz/5.8GHz*, automatically selecting the optimal channel based on electromagnetic interference for robust anti-interference capabilities, featuring a high transmission of 64Mbps and low transmission latency.

- 12.4 mile image transmission distance
- 1080P/30FPS real-time image quality
- 900MHz/2.4GHz/5.2GHz/5.8GHz* frequency bands
*5.2 GHz is applied only to FCC, CE, and UKCA regions, while 900 MHz only to FCC regions.

Enterprise Platform

The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the Autel Alpha' mission capability.

Polygon Mission

Supports one-click automatic generation of polygon flight areas.

Quick Mission

Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility during flight operations

Waypoint Mission

Users can add waypoints for flexible, non-structured flight paths.

AI Target Recognition

Based on Autel's AI recognition technology, the Alpha can automatically identify and lock onto different types of targets such as human, boat or vehicles through zoom, wide, or infrared cameras, projecting the target's location onto the map.

Laser Ranging

Click on the remote controller screen or map, it will show the target latitude, longitude, height, and other information swiftly.

Tripod

The gimbal locks onto the target, and follows the target's movement while hovering, ensuring the target remains at the center of the frame.

Data Security

Privacy protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally. Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.

Specs

Aircraft
Weight （Battery and gimbal included)	6100g
Max. Payload	3000g
Dimensions	1185*942*262mm (unfolded, incl. propellers) 788*551*255mm (unfolded, excl. propellers) 453*262*245mm (folded, excl. propellers)
Diagonal Wheelbase	810mm
Max Flight Time (windless)	40mins
Max Hovering Time (windless)	38mins
Max Horizontal Speed (windless near sea level)	24m/s
Max Wind Resistance	15m/s
Hovering Accuracy	Vertically: ±0.1 m (when vision systems working normally); ±0.3 m (when GNSS working normally); Horizontally: ±0.15 m (when vision systems working normally); ±0.3 m (when GNSS working normally)
IP Rating	IP55
Operating Temperature	-20℃ to +50℃
GNSS	GPS+GLONASS+BeiDou+Galileo
DG-L35T
Autel Alpha Wide Camera
Sensor	1/2 CMOS, Effective pixels: 48M
Lens	DFOV: 84° Equivalent Focal Length: 24 mm Aperture: f/2.8 Focusing Distance: 1m ~ ∞
ISO Range	Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO256000)
Autel Alpha Zoom Camera
Sensor	1/1.8" CMOS
Lens	FOV: 66.7-34.6° Focal Length: 34.7~838mm Aperture: f/1.61~f/5.19
Zoom Range	Optical Zoom: 1~35 times Digital Zoom: 35~560 times
ISO Range	Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO320000)
Photo	Format: 8bit JPG，12bit DNG Resolution: 3840*2160
Video	Format: MP4/MOV Max Resolution: 3840*2160 P30
Autel Alpha Thermal Camera (Wide)
Sensor	Uncooled VOx Microbolometer
Lens	FOV：42° Focal length: 13mm Aperture: f/1.2
Resolution	640*512 P25
Temperature Measurement Range	-20℃ to +150℃，0℃ to +550℃
Temperature Measurement Accuracy	3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃)
Autel Alpha Thermal Camera (Tele)
Sensor	Uncooled VOx Microbolometer
Lens	FOV：12.3° Focal length: 45mm Aperture: f/1.2
Zoom Range	Wide Digital Zoom: 1~3.5 times Tele Digital Zoom: 3.5~56 times
Resolution	640*512 P25
Temperature Measurement Range	-20℃ to +150℃，0℃ to +550℃
Temperature Measurement Accuracy	3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃ to 60℃)
Autel Alpha Laser Rangefinder
Measuring Range	10-2000m
Measurement Accuracy	± (1m + D×0.15%) *D is the distance to a vertical surface



In The Box

Autel Alpha Drone
L35T Camera Payload
Spare Propellers
V3 Smart Controller
Battery Charger
Battery x 2
Cables & Adapters
Lanyard & Screwdriver
Cleaning Kit
Manuals
